ZH420 Portable cement transit truck self loading mobile concrete mixer for sale
Description of Mobile Self-Loading Concrete Mixer Truck
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
Parameters of 4.2m3 Self Loading Cement Mixer
| Name | Item | Specification |
| Whole truck | Net weight | 9000 KG |
| Gross weight | 12675 KG |
| Transmission | Full Hydraulic |
| 4 WD |
| Brake | Air Brake |
| Chassis | Off-road |
| | Loader bucket | capacity | 0.6m3 |
| Control | Hydraulic |
| Tilt angle | 30% | |
| Speed | High | 0-25KM/H |
| Low | 0-9KM/H |
| Mini turning radius | 6.5M/R |
| Tyre model | 16/70-20 wire typres |
| Engine | Rated Power/RPM | 95KW/2400RPM |
| Max.Torque/RPM | 460N.M/1400RPM |
| Cylinder | 4 |
| Starter | Electric |
| Cooling type | water cooling |
| Maxing Drum | Output capacity | 4.2 M3 |
| Bank Angle | 16 ° |
| Rotation Angle | 19-21R/min |
| Chute | Swing Angle | ≥60° |
| Angle control | Hydraulic |
| Size | Long:176cm |
| Short: 40cm |
| Loader | Weighing model | computer control |
| Concrete Standard | C15.C20.C25 C30 |
| Accuracy | Cement | ≤±2%/time |
| Relative Error | ≤±3%/time |
| water | ≤±1%/time |
| Additive | ≤±1%/time |
| Admixture | ≤±2%/time |
| Loader control | Hydraulic 4 way stick |
| Over size | 6252x2200x2892 mm |
Features of 4.2m3 Self Loading Cement Mixer
1. Shot blasting machine
When the elements are moved in to the machine, thousands of the little steel balls will heat on the surface of elements. Then the surface will become uneven, and it will increase the adhesive force. So it will ensure good painting.
2. Robot welding
Advanced technology of welding robots, which ensures high working efficiency and high accuracy
3. Closed painting room
In order to assure good painting and environmental protection, here is closed painting room. The machine will be shinning even after long time use. Moreover, we can also meet the environmental standards, so that we can manufacturer and delivery the equipment for our customers on time.
4. Sufficient elements stored
Here are sufficient elements stored in our factory, which ensures short delivery time. Meanwhile, we have ability to accept big orders from our customers.
5. Strict quality inspection
Quality inspection department, and strict inspection guarantees that the unqualitified equipment will be reworked and will not be delierevd to our customers.
FAQ
Q: What is the delivery time?
A: 3-15days after receiving advance payment.
Q:What payment terms you use?
A:Usually the world most common used T/T,L/C ,etc
Q: Can we put our logo on the machine?
A. Yes, it is available. LOGO and color are usually as per customer's requirement.
Q: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us, and our service line is available 24/7, and then we will feedback you immediately. Also on-site technician service available as request.
Product Tags:
|
|

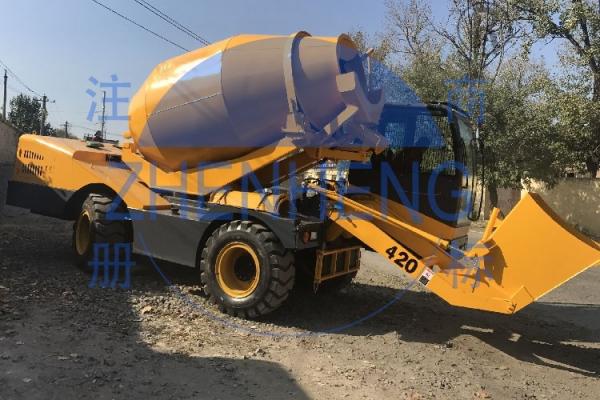

4.2m3 Self Loading Cement Mixer Images
|
